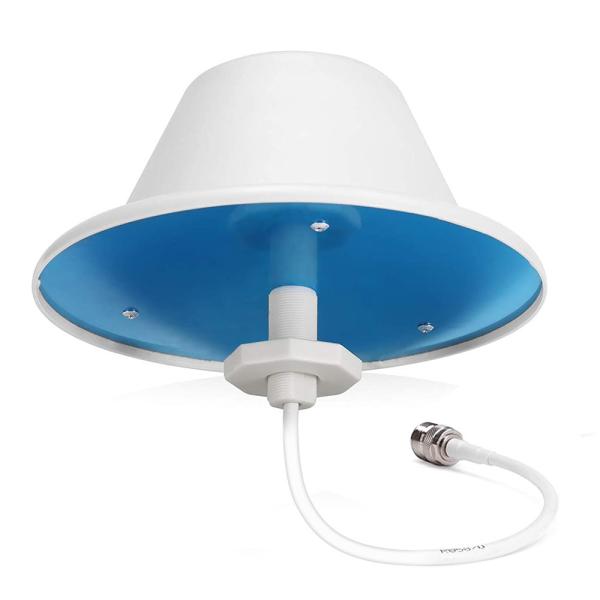

Omnidirectional Dome 4G LTE Antenna

Name: Omnidirectional Dome 4G LTE Antenna
Brand: BIOTV
Price: 100 USD

Buy cheap Omnidirectional Dome 4G LTE Antenna product

Brand Name : BIOTV

Model Number : BIO-G908

Certification : CE, REACH, SGS

Place of Origin : CHINA

MOQ : 100PCS

Price : 100 - 500PCS: $5.6 500-1000PCS: $ 5.2 1000-3000PCS:$4.8 >3000PCS $4.5

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 100000PCS/MONTH

Delivery Time : 30DAYS

Packaging Details : PE BAG

Frequency Range : 698-960MHz / 1710-2170MHz / 2500-2700MHz

Gain : 4-6dBi

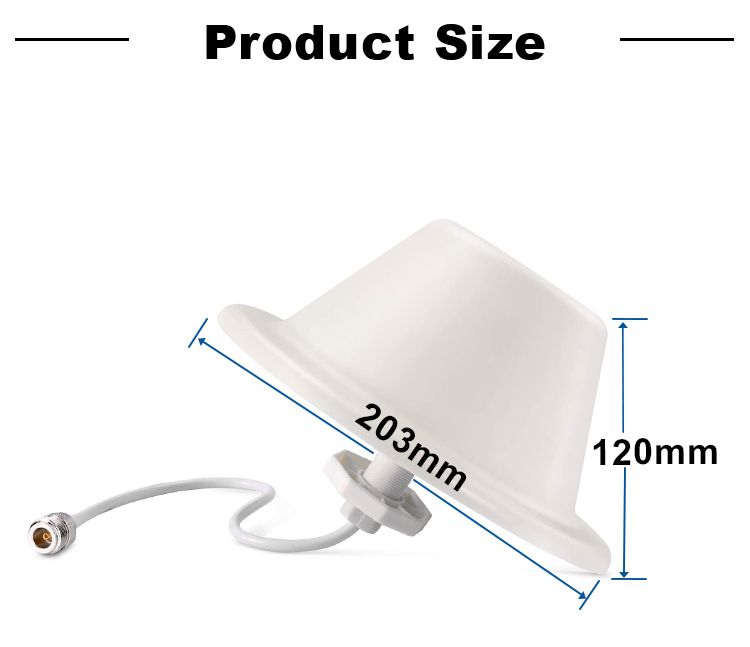

Size : 203*120 mm

Polarization : Linear

Linear : F/IEC(M)

Color : WHITE

Cable : RG-58

VSWR : 1.5 : 1

Packaging : PE,COLOR BOX

Feature : Omni-Directional

Contact Now

Omni-Directional Ceiling Mount Dome 4G LTE Antenna For Mobile Signal Booster Repeater

Specification

Product Name:		4G Antenna
Frequency Range:		698-960 MHz / 1710-2170 MHz / 2500-2700 MHz or 2.4 GHz / 5.8 GHz
Gain (dBi) :		15 dBi
V.S.W.R :		1.5 : 1 Max
Impedance :		50 Ohm
Radiation Pattern :		Omni-directional
Cable Type :		RG-174 (Optional)
Connector :		SMA(M) (Optional)
Size (mm) :		Φ 66 * 300 mm

Advantages &special

•Direct factory have better control in the quality and lead time of Antenna Shipment
•All production operations comply with ISO 9001:2015 international quality standards.

We also have RoHS, CE, and REACH certifications available for All the Antennas.
•8 R&D engineers with more than 15 years of Antenna industry experience

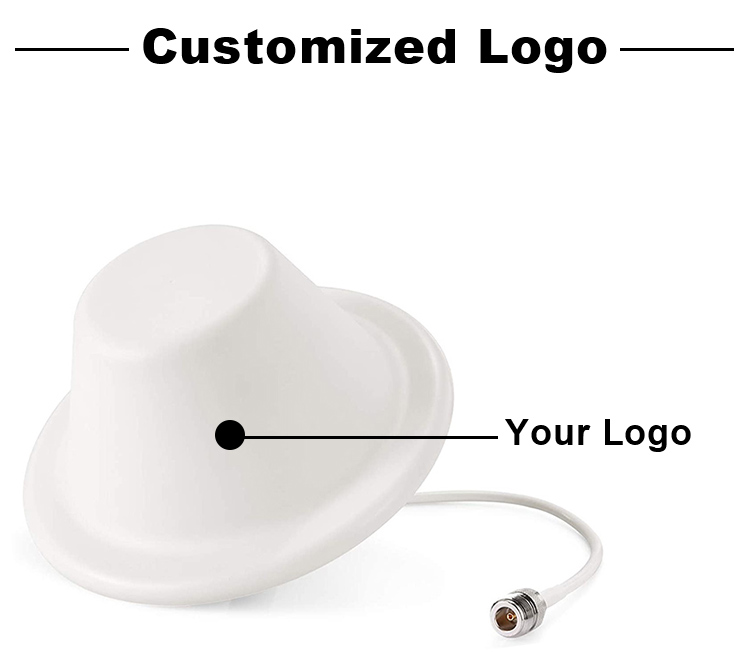

•OEM/ODM high-end customized service to meet the requirements of different customers.
•24H /7D after sales services

FAQ

Q : Do you offer samples?
A : Yes, we offer samples for testing.

Q : What's your MOQ?
A : Our MOQ is 500pcs, the first order is negotiable.

Q : How do you test your prouducts?
A : We use network analyzer (Agilent 8714ET/HP-8714ET) to test the antennas’
VSWR,lmpedance,Smith Chart and Frequency in the simulation environment.

And conducting instrument to test the cable.

Q : How far your company from Shenzhen?
A : It only takes 30 minutes from Luohu railway station to Changping railway station by

CRH China Railway High-speed.

Q : Do you make OEM products?
A : Yes,we can do.

Q : Do you have RoHS certification?
A : We can do RoHS certifiction according to customers’ requirements.
The customers need to charge the handing fee.Or we can provide customers the SGS report of the

material for free.
